FEC

Fuel Filter Testing Machine Manufacturer in India

Fuel Filter Testing Machine Supplier in India
Enquire Now →

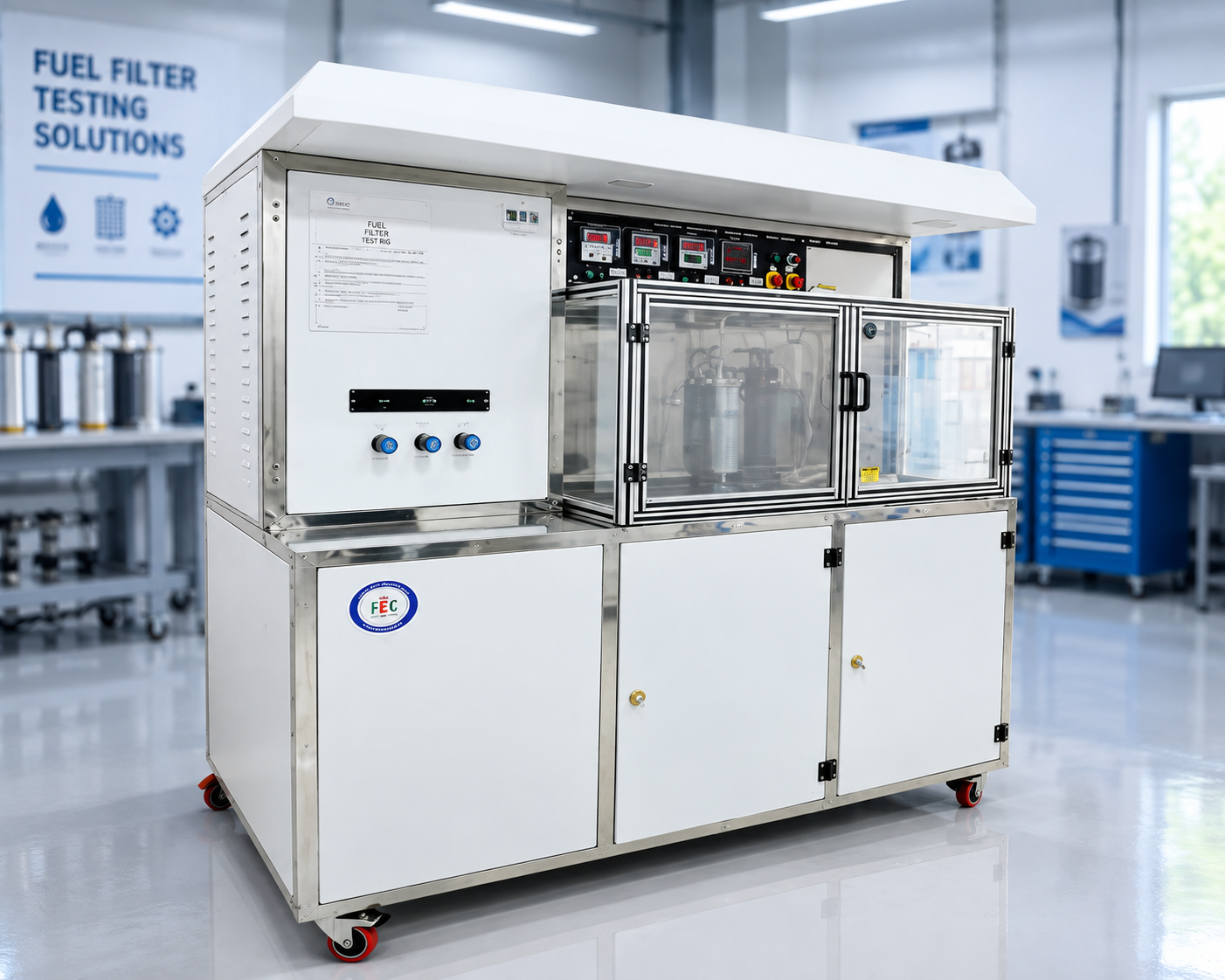

Fuel Filter Testing Machine(ISO 4020, JIS D & ISO 19438)

A Fuel Filter Testing Machine is designed to test and evaluate fuel filters according to their intended performance and quality requirements. Proper testing is an important part of fuel filter manufacturing and quality control, helping manufacturers assess filters before they are supplied for their intended applications.

FEC (Filtration Engineering & Consultants) manufactures Fuel Filter Testing Machines for practical filtration testing requirements. With experience in the filtration industry since 2000, we understand the importance of systematic testing and quality evaluation in filter manufacturing.

✓ Fuel Filter Performance Evaluation
✓ Quality Control and Inspection
✓ Filtration Industry Experience

Designed for Practical Fuel Filter Testing

Fuel Filter Testing Equipment Exporter in India
Practical Testing Equipment
FEC

Fuel filters are used to help remove unwanted contaminants from fuel before it reaches important components of a system. Because different fuel filters can have different designs and applications, their testing requirements may also vary.

For example, a fuel filter manufacturer may need to evaluate filters during the production process before they are supplied for use. A suitable Fuel Filter Testing Machine provides a dedicated testing setup that supports a more organised and consistent evaluation process.

At FEC, we focus on understanding the type of fuel filter and the required testing parameters before discussing a suitable testing solution.

Applications

Fuel Filter Testing Machine

The Fuel Filter Testing Machine can be used for:

  • 01 Fuel filter manufacturing units
  • 02 Quality control and inspection processes
  • 03 Fuel filter performance evaluation
  • 04 Product testing and development
  • 05 Automotive and industrial filter testing applications
Why Choose FEC?

Experience That Supports Practical Filtration Solutions

Diesel Fuel Filter Testing Machine Manufacturer in India
2000 Filtration
Experience
01

Established in 2000, FEC brings more than 25 years of experience in the filtration field. Our understanding of filters and filtration testing requirements helps us take a practical and application-focused approach to every requirement.

We focus on clear communication and suitable solutions based on the customer's actual testing needs.

Filtration Engineering & Consultants

Looking for a Fuel Filter Testing Machine?

If you are looking for a Fuel Filter Testing Machine manufacturer, share your filter type and testing requirements with FEC (Filtration Engineering & Consultants). Our team can help you discuss a suitable solution based on your application.

Contact FEC today to discuss your Fuel Filter Testing Machine requirement.

Discuss Your Requirement
Enquire Now →
OUR PRODUCT RANGE

Fuel Filter Testing Equipment

Automotive Fuel Filter Testing Equipment Supplier in India
Representative image
FUEL FILTER TESTING EQUIPMENT
PRODUCT / 01

Multi Pass Filter Test Rig ISO 19438

The Multi Pass test stand is mainly used for testing the performance of Fuel filters according to ISO 19438 standards. These standards describe a method for determining the contaminant capacity, particle removal and differential pressure characteristics of filter elements. In order to determine such characteristics, filter elements are injected with continuous contaminant (test dust), whereas online particle sensors measure the contamination, thus making the evaluation of the filter element's performance possible. This test stand is automatically Test Report generated through software controlled by a computer chart and all the test parameters can be displayed on the screen. Data handling and generation of reports according to the standards mentioned above are included.

Fuel Filter Efficiency Testing System Exporter in India
Representative image
FUEL FILTER TESTING EQUIPMENT
PRODUCT / 02

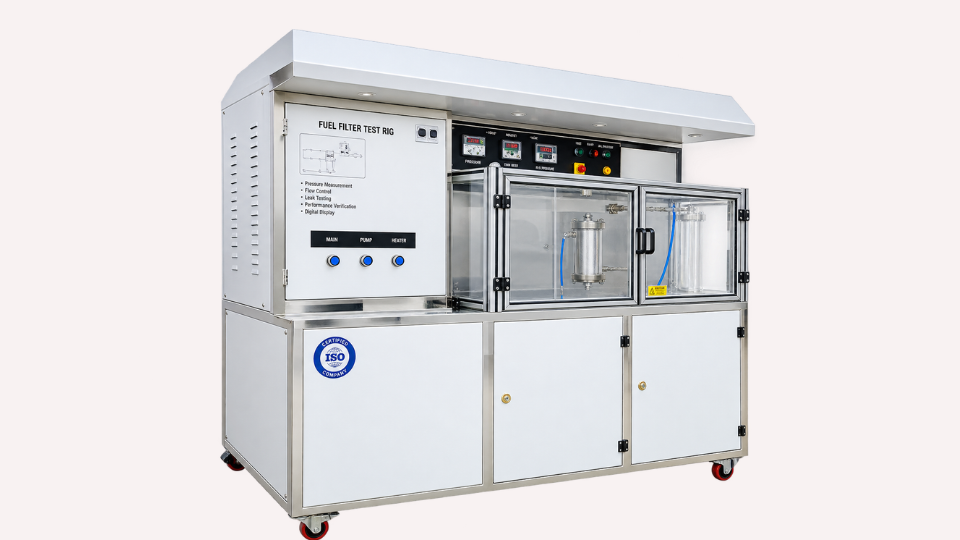

Fuel Filter Test Rig

All structure will be fabricated with GI Sheet and and frame will be made from M.S. Pipe work with automotive paint and Epoxy paint.

  • Lighting arrangement for test rig for working the dark also.
  • Including Pressure Gauges for In-let and Out-let Pressure, Flow Meter for set the desired Flow.
  • Absolute filter media holder for absolute filter as per ISO 4020-6.4.
  • Upper plate form made from stainless steel sheet with S.S washbasin type tray with drainage.
  • All pipes for Test circuit will be made from seam less S.S or Cupper pipe and long band provided as per international specification.
  • For main circuit pump will be provided as per specification which can not be disturbed any actual particle size.
  • Reservoir Made from Stainless S Reservoir Made from Stainless Steel Conical as per specification standard.
  • Smoothly flow adjustable regulator for increase and decrease the flow of oil.
Fuel Filter Efficiency Testing System Exporter in India
Representative image
FUEL FILTER TESTING EQUIPMENT
PRODUCT / 03

Filter Fabrication Integrity ISO 2942

A Bubble Point test method applicable to filter elements used in Hydraulic fluid power system the concepts of filtration rating, efficiency or retention capacity and should be used for information only. Pressure at which the first bubble stream appears when a filter element is tested using the method specified in this International Standard. Verification of fabrication integrity defines the acceptability of the filter elements for further use or testing.

The first bubble point is established through continuation of the fabrication integrity test. It is under no circumstances a functional characteristic of a filter element; in particular, it cannot be used for extrapolation to the concepts of filtration rating, efficiency or retention capacity and should be used for information only.

Fuel Filter Flow Testing Equipment Manufacturer in India
Representative image
FUEL FILTER TESTING EQUIPMENT
PRODUCT / 04

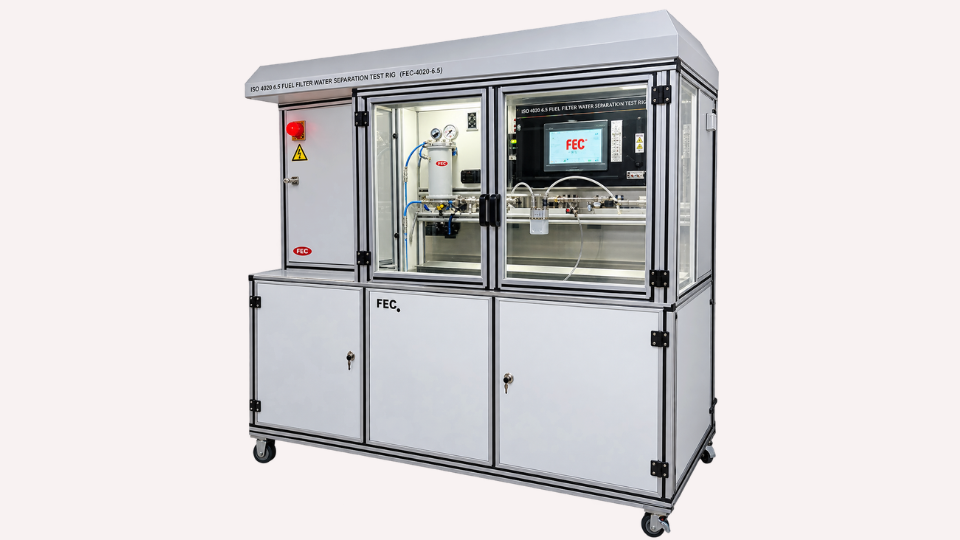

Fuel Water Separation Filter Test Rig ISO 4020 6 5 ISO 16332

All structure will be fabricated with GI Sheet and and frame will be made from M.S. Pipe work with automotive paint and Epoxy paint.

  • Lighting arrangement for test rig for working the dark also
  • Including Pressure Gauges for In-let and Out-let Pressure, Flow Meter for set the desired Flow
  • Absolute filter media holder for absolute filter as per ISO 4020-6.4
  • Upper plate form made from stainless steel sheet with S.S washbasin type tray with drainage
  • All pipes for Test circuit will be made from seam less S.S or Cupper pipe and long band provided as per international specification.
  • For main circuit pump will be provided as per specification which can not be disturbed any actual particle size
  • Reservoir Made from Stainless Steel Conical as per specification standard
  • Smoothly flow adjustable regulator for increase and decrease the flow of oil
Fuel Filtration Quality Testing Machine Manufacturer in India
Representative image
FUEL FILTER TESTING EQUIPMENT
PRODUCT / 05

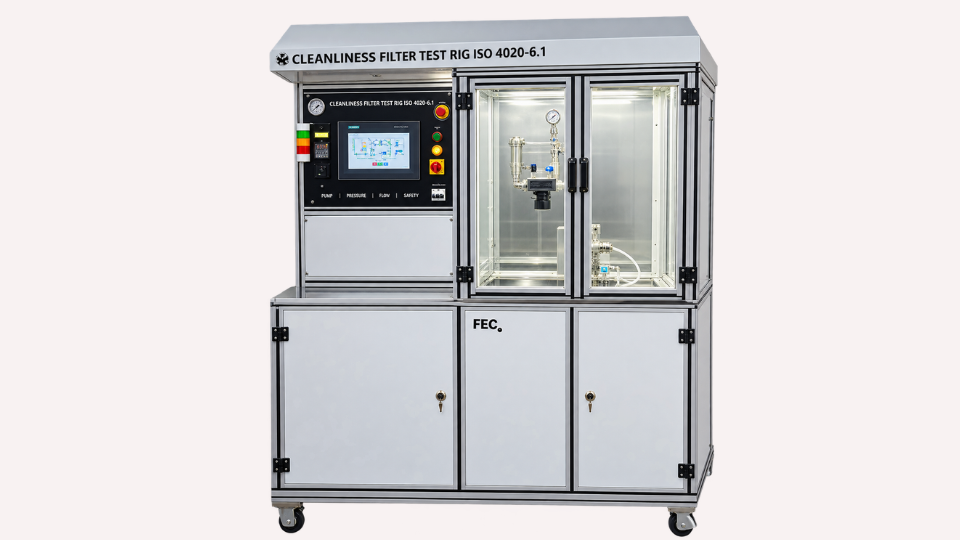

Cleanliness Filter Test Rig ISO 4020 6.1

All structure will be fabricated with S.S and M.S with automotive paint and Epoxy paint also.

Two Nos of Stainless Steel Tank . Gloves Box with Exhaust fan with gloves. Spray nozzle fitted in Glove box Test Filter Fixture / Adapter. One nos 0.8 Micron Membrane filter paper 142 mm dia with Holder High Speed Vacuum pump . One Nos 0.45 microns membrane filter paper with filter holder.

Industrial Fuel Filter Test Bench Manufacturer in India
Representative image
FUEL FILTER TESTING EQUIPMENT
PRODUCT / 06

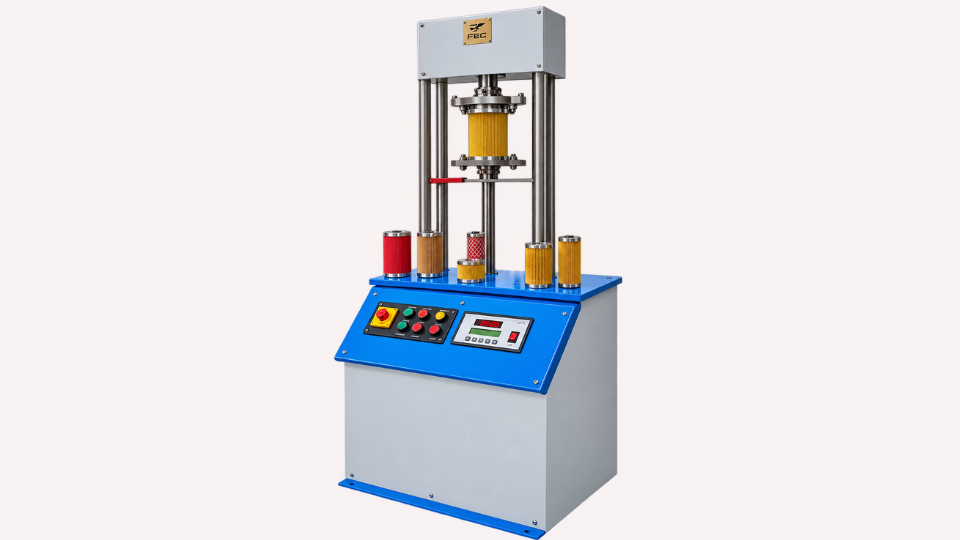

Filter End Cap Bond Strength Tester

This tester is used for testing the Filter End Cap Bond strength testing. With the proper accessories (optional), it’s also available to test the column tensile strength of the Filter Fabricated with End Cap and filtration media bon with PVC Adhesive its called the Filter Element . It is equipped with a precise ball screw, which drives the Tensile platen steadily along the guide track to Tensile the specimen. A high accurate load cell detects the Tensile signal via the analyses of test program to display the test results on the indicator…..

Fuel Filter Testing Machine Manufacturer in India

Fuel filter manufacturers need reliable testing equipment to check how their filters perform and identify possible issues before supplying them to customers. FEC (Filtration Engineering & Consultants) has been working in the filtration field since 2000 and helps businesses explore equipment suited to their testing needs. As a Fuel Filter Performance Testing Machine Manufacturer in India, FEC focuses on understanding filter types and the performance checks required for each application. For example, an automotive component manufacturer may need to evaluate a fuel filter’s ability to capture contaminants and maintain the required fuel flow under defined test conditions.

Choosing suitable testing equipment helps manufacturers improve their quality checks and make informed decisions during production. As a Fuel Filter Testing Machine Manufacturer in India, FEC helps businesses discuss their testing requirements and explore appropriate equipment options. Companies searching for a Fuel Filter Quality Testing Machine Manufacturer in India can contact FEC to discuss their filter design and intended tests. A suitable testing setup can help identify performance issues early and support consistent product evaluation before dispatch. If you are looking for a Fuel Filter Testing Machine Manufacturer in India, contact FEC (Filtration Engineering & Consultants) to discuss your requirements and explore a suitable solution for your business.

Fuel Filter Testing Machine Supplier in India

Choosing suitable testing equipment helps fuel filter manufacturers check product performance and identify possible issues before supplying filters to customers. FEC (Filtration Engineering & Consultants) has been working in the filtration field since 2000 and helps businesses explore equipment that matches their testing needs. As a Fuel Filter Testing Lab Equipment Supplier in India, FEC focuses on understanding filter types and the checks customers need to perform. For example, an automotive component manufacturer may need to evaluate fuel flow and filtration performance under defined test conditions to check whether a filter meets its intended requirements.

A suitable testing setup can help manufacturers improve quality checks and make informed decisions during production. As a Fuel Filter Testing Machine Supplier in India, FEC helps businesses discuss their applications and explore relevant equipment options. Companies looking for a Fuel Filter Testing System Supplier in India can contact FEC to discuss their filter designs and testing requirements. The right equipment can help manufacturers identify performance issues early and maintain a consistent inspection process before dispatch. If you are searching for a Fuel Filter Testing Machine Supplier in India, contact FEC (Filtration Engineering & Consultants) to discuss your requirements and explore a suitable solution for your business.

Fuel Filter Testing Machine Exporter in India

Reliable fuel filter testing helps manufacturers check filtration performance and identify possible issues before products reach customers. FEC (Filtration Engineering & Consultants) has been working in the filtration field since 2000 and helps businesses explore equipment suited to their testing requirements. As a Fuel Filter Test Equipment Exporter in India, FEC focuses on understanding filter types and the checks customers need to perform. For example, an automotive parts manufacturer may need to evaluate fuel flow and the filter’s ability to capture contaminants under defined test conditions before approving it for production.

Choosing suitable testing equipment can help businesses improve quality checks and make informed decisions about their products. As a Fuel Filter Testing Machine Exporter in India, FEC helps customers discuss their applications and explore relevant equipment options. Businesses looking for a Fuel System Testing Equipment Exporter in India can contact FEC to discuss their testing needs and identify a suitable setup. The right equipment can help manufacturers assess filter performance and identify potential issues before dispatch. If you are searching for a Fuel Filter Testing Machine Exporter in India, contact FEC (Filtration Engineering & Consultants) to discuss your requirements and explore a suitable solution for your business.
